Capturing stringify strings

Capturing stringify strings

Sometimes programmers tend to be too tidy or at least its a need to perform its job, because if we think about it, programming its just a traceback of given reason leaved behind. The name of the game: Logic.

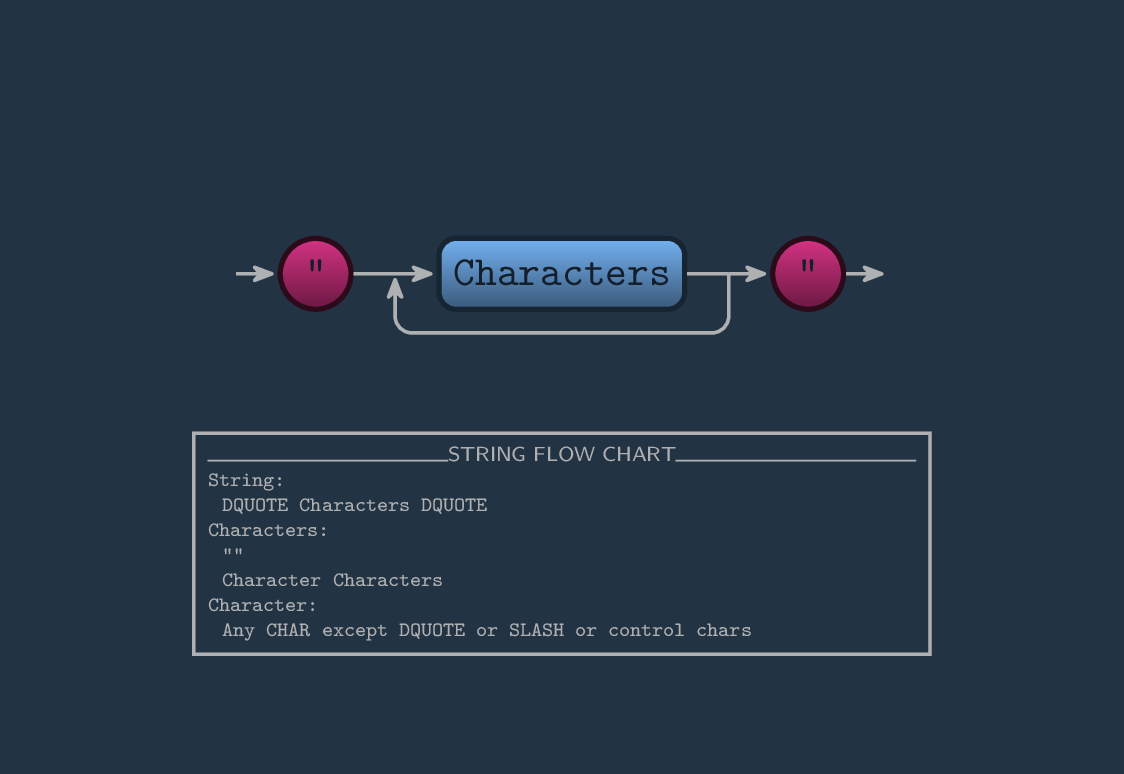

String Flow Chart

The first thing that we should do to capture stringify strings is know its definition. In basic terms, a string in that sense, is everything wraped by double quotes. If we would like to write a string in that way, first we write our first quote, then everything you wish, and then close it with the last double quotes. It is characterized by a string flow chart.

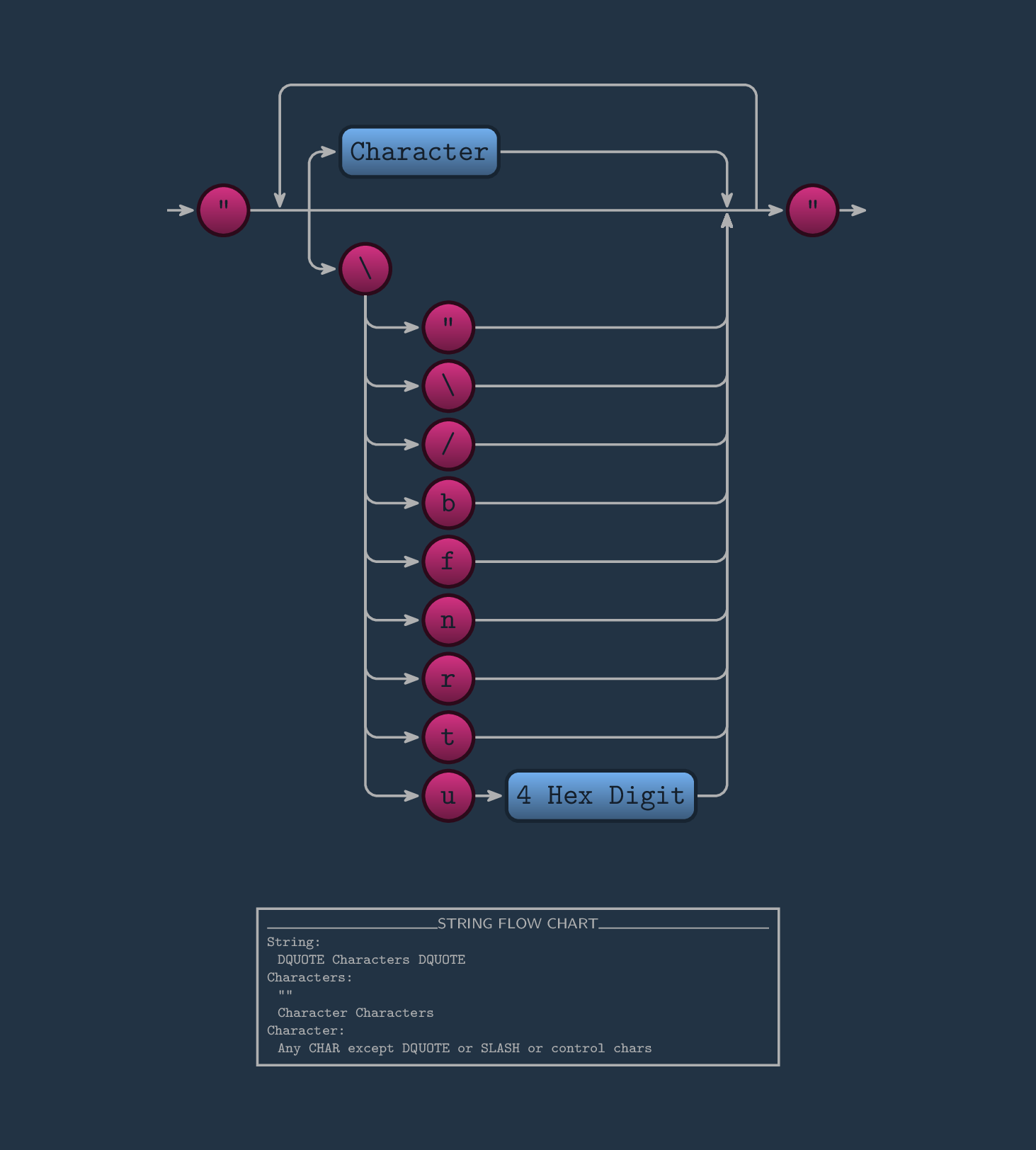

String Flow Chart

At this point we have:

• Definitions: Based on the working alphabet, that could be english characters and symbols, adding special slashed characters, a slash followed by an element of a selected characters, and if that element would be the “u” character must be followed by 4 digits.

• A flow chart: It represents the way to capture a string while the writing action happen. This is very important because we could know at every moment if we are able to write certain character and if it is correct.

So, we know what to write and how to write it and determine if it is rightly wroten. For example: We know or possibilities once we have written a double quote:

1. A writable english character or symbol.
2. A slash followed by a one character code, and if that code is and “u”, must ne followed by 4 hexadecimal digits.
3. Or close the string with another double quote.

And with the above we know if it is right, because we dont have any string if we havent close it.

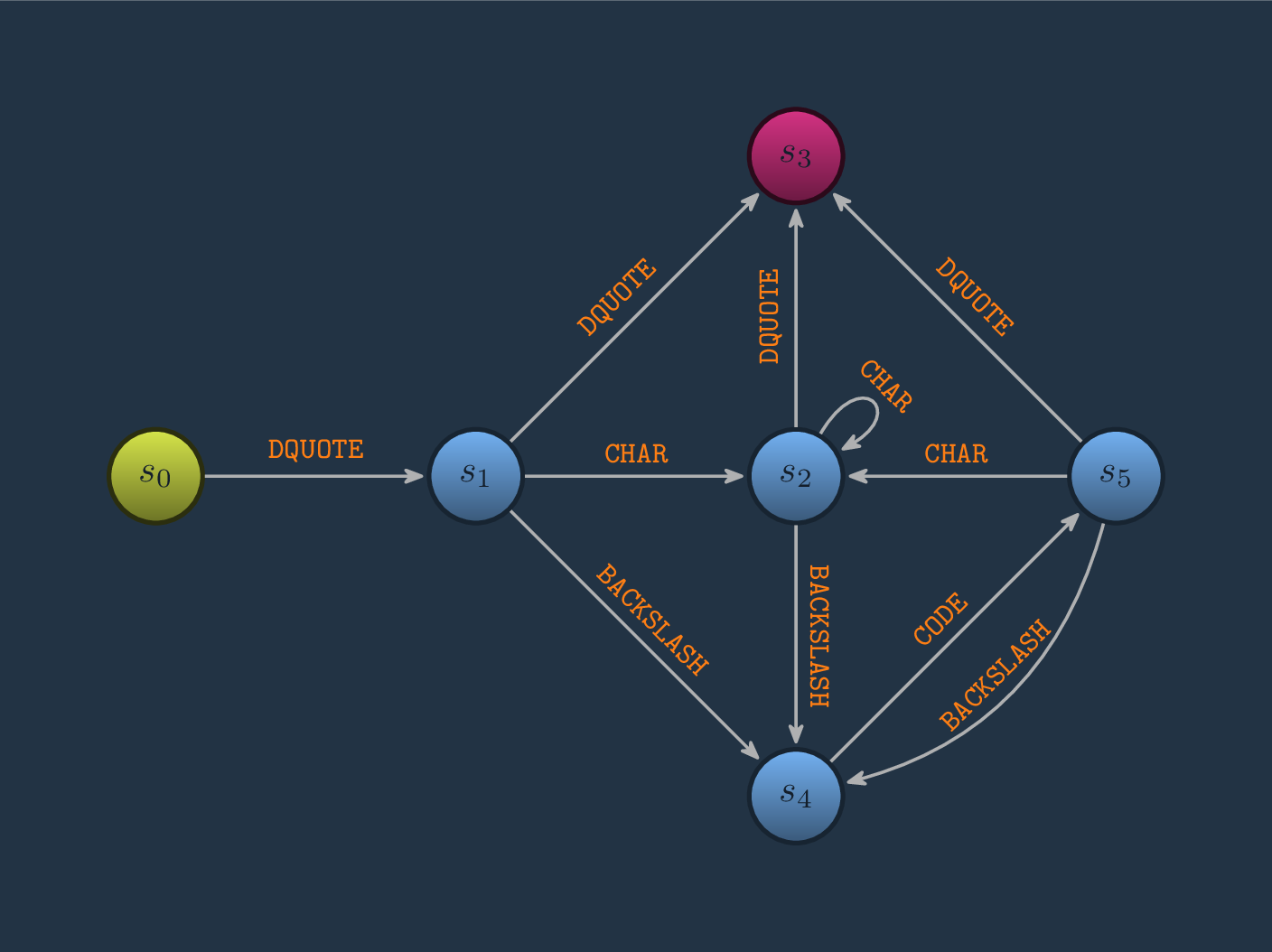

String automata
